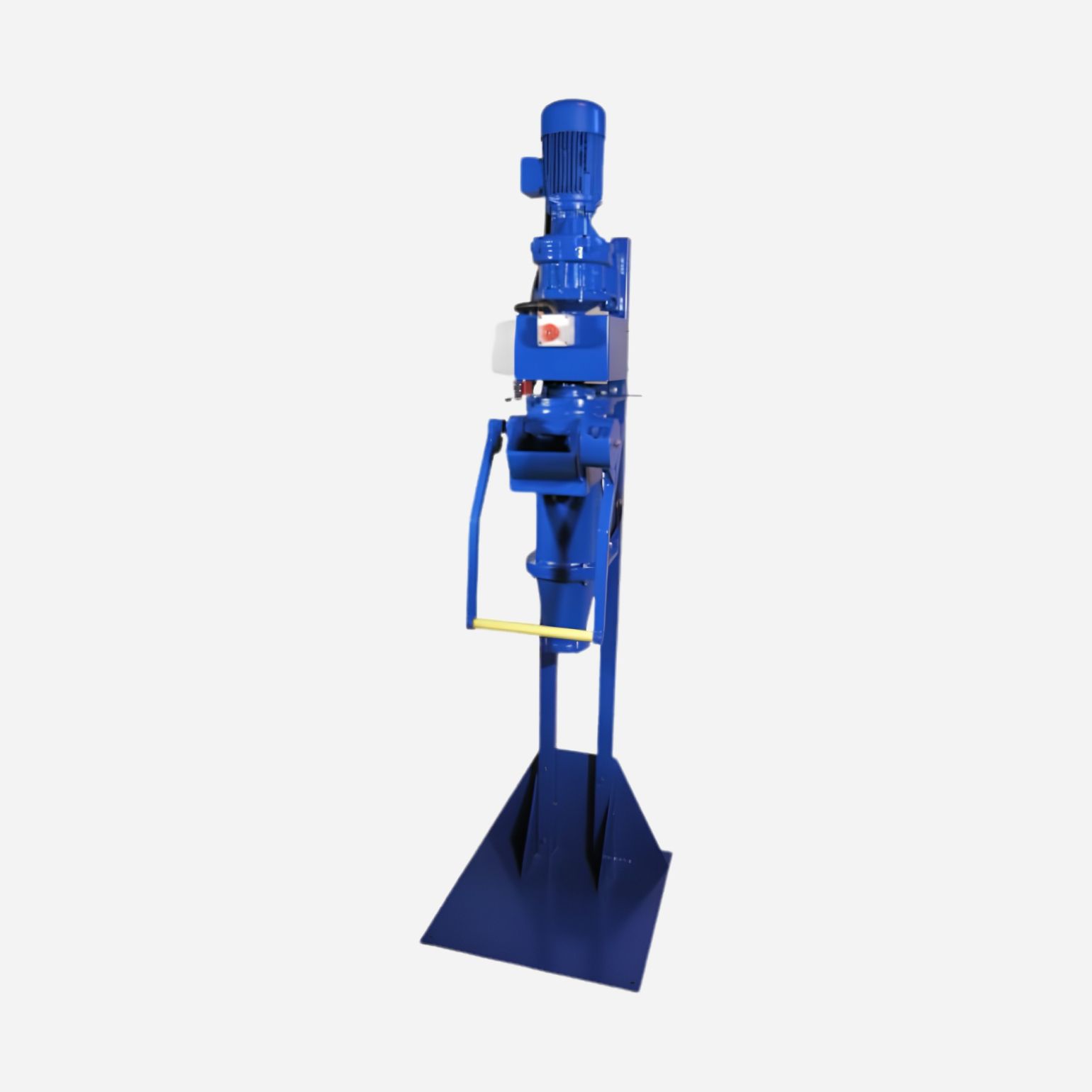

G55 VERTICAL PUGMILL

The G55 Vertical Pugmill is the largest and highest-capacity vertical pugmill in the Gladstone Engineering range, designed for professional ceramic studios, educational institutions and commercial pottery production. Its innovative vertical configuration provides superior clay processing performance while requiring significantly less floor space than conventional horizontal pugmills.

Constructed from heavy-duty cast aluminium sections, the G55 combines exceptional durability with efficient clay mixing and extrusion. The vertical design allows gravity to assist the clay flow through the machine, producing consistently blended material while improving throughput and reducing the machine's overall footprint.

The machine features individually mounted auger blades that can be repositioned to suit different clay bodies and extrusion requirements. This configurable auger system enables users to optimise the pugmill for improved clay mixing, reclaiming or extrusion depending on the application.

For reliable long-term performance, the auger is supported by dual taper thrust bearings and driven through a flexible coupling by a direct-drive inline helical geared motor. This robust drive system delivers smooth, consistent power while handling demanding workloads with ease.

Capable of processing approximately 700kg of clay per hour, the G55 is ideally suited to ceramic manufacturers, production pottery studios, colleges, universities and large community workshops that regularly recycle substantial quantities of clay.

Manufactured in the UK by Gladstone Engineering, the G55 Vertical Pugmill combines industrial performance, flexible clay preparation and robust engineering to provide an efficient solution for demanding ceramic production environments.

Key Features

• Heavy-duty professional vertical clay pugmill
• Innovative space-saving vertical design
• Superior performance compared to conventional horizontal pugmills
• Large 200mm cast aluminium barrel
• 100mm extrusion outlet
• High-capacity output of approximately 700kg per hour
• Individually adjustable auger blades
• Configurable for different clay bodies and extrusion requirements
• Dual taper thrust bearing support
• Flexible coupling drive system
• Inline helical geared reduction motor
• Split-body construction for easy cleaning
• Durable two-stage coated finish
• Manufactured in the UK

Suitable For

• Commercial pottery production
• Professional ceramic studios
• Educational ceramics departments
• Universities and colleges
• Community pottery workshops
• Clay reclaiming
• Clay mixing
• Clay extrusion
• Stoneware clay
• Earthenware clay
• Porcelain clay
• High-volume ceramic production

Product Specifications

• Product: G55 Vertical Pugmill
• Type: Vertical electric clay pugmill
• Barrel Diameter: 200mm cast aluminium barrel
• Extrusion Size: 100mm
• Output: Approximately 700kg of clay per hour
• Drive Motor: 1.1kW (1.5 HP) reduction drive gearbox, direct drive, 230/400V
• Construction: Cast aluminium 200mm barrel with 100mm extrusion and split-body design for easy cleaning
• Mixing System: Individually mounted adjustable auger blades
• Bearing System: Dual taper thrust bearings
• Drive System: Inline helical geared motor with flexible coupling
• Dimensions: 760 × 760 × 2300mm (L × W × H)
• Delivery Weight: 300kg
• Finish: Durable two-stage coated finish
• Applications: Clay reclaiming, mixing and extrusion
• Suitable For: High-volume clay recycling and ceramic production
• Manufactured In: United Kingdom
