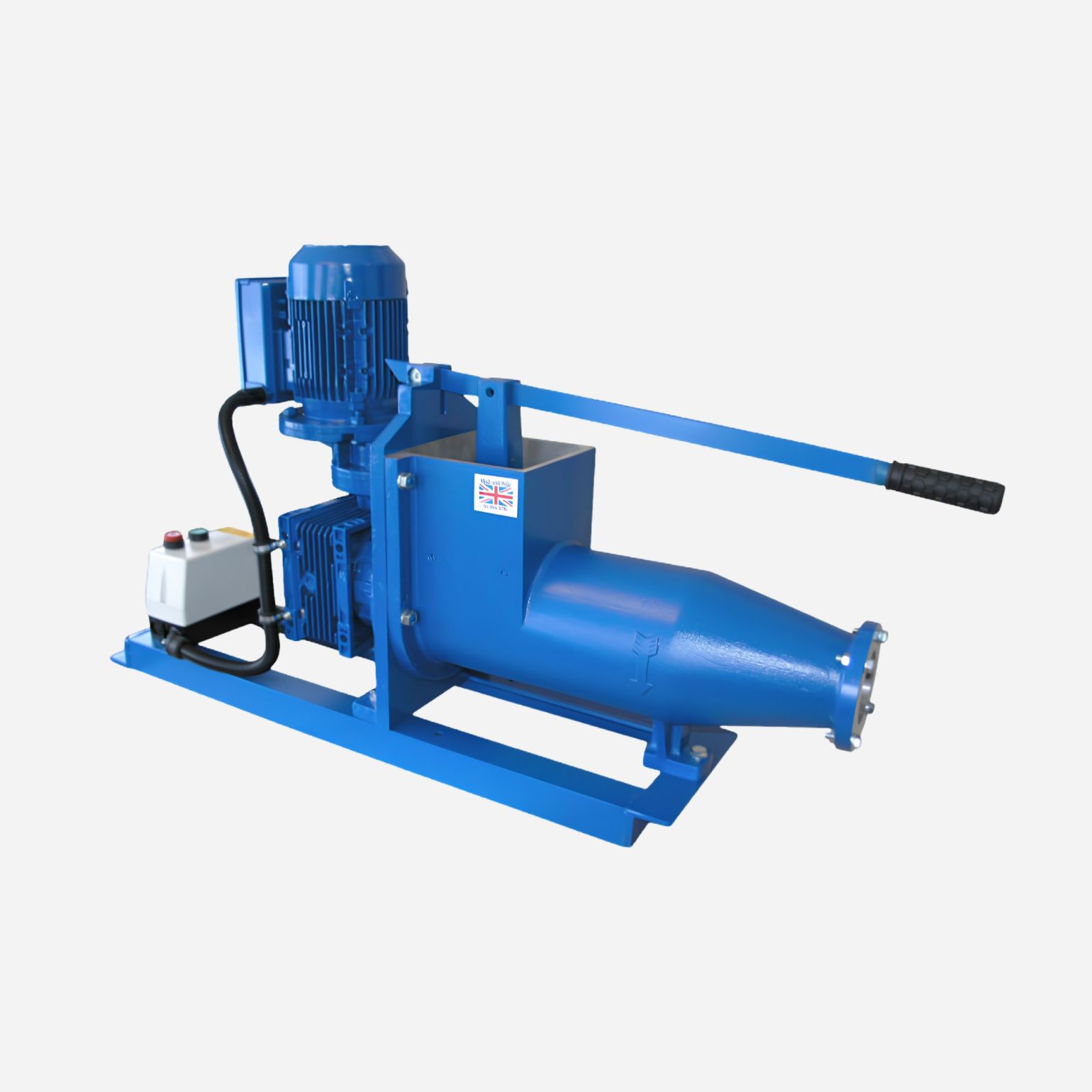

G50E 75MM PUGMILL

The G50E 75mm Pugmill builds on the proven design of the G49E, offering increased capacity and higher output for busy pottery studios, educational ceramics departments and professional ceramic artists. With its larger barrel and hopper, the G50E allows greater volumes of clay to be processed while remaining compact enough for classroom and studio environments.

Constructed with a robust 6-inch (150mm) aluminium body and 75mm extrusion outlet, the G50E delivers smooth, consistent clay extrusion while providing excellent mixing performance for reclaiming and preparing clay. The larger hopper makes loading clay easier and improves workflow during continuous use.

The machine features a split-body design, allowing quick access for cleaning and maintenance. Individual aluminium mixing blades are mounted on a hexagonal steel shaft and can be repositioned into different configurations to optimise either clay mixing or extrusion, giving users greater flexibility for different clay bodies and production requirements.

Safety is built into the design with a hopper safety grid and thermal overload safety switch supplied as standard, making the G50E well suited for schools, colleges, universities and professional workshops where operator protection is essential.

Designed and manufactured in the UK by Gladstone Engineering, the G50E combines robust construction, efficient clay processing and simple maintenance to provide a dependable solution for preparing high-quality clay.

Key Features

• Compact electric clay pugmill
• Higher output than the G49E
• Large 150mm (6") aluminium barrel
• 75mm extrusion outlet
• Larger hopper for easier loading
• Split-body construction for easy cleaning
• Adjustable aluminium mixing blades
• Hexagonal steel drive shaft
• Hopper safety grid fitted as standard
• Thermal overload safety switch
• Ideal for clay reclaiming, mixing and extrusion
• Manufactured in the UK

Suitable For

• Pottery studios
• Schools
• Colleges and universities
• Ceramic artists
• Clay reclaiming
• Clay mixing
• Clay extrusion
• Stoneware clay
• Earthenware clay
• Porcelain clay
• Hand building
• Wheel throwing
• Small production pottery

Product Specifications

• Product: G50E Pugmill
• Type: Electric clay pugmill
• Barrel Diameter: 6" (150mm) aluminium body
• Extrusion Size: 75mm (3")
• Output: Approximately 300kg of clay per hour
• Drive Motor: 0.75kW (1 HP) reduction drive gearbox, 230V
• Construction: Split-body design
• Mixing System: Adjustable aluminium blades mounted on a hexagonal steel shaft
• Hopper: Large capacity hopper
• Safety Features: Hopper safety grid and thermal overload safety switch
• Dimensions: 800 × 280 × 500mm (L × W × H)
• Delivery Weight: 78kg
• Finish: Durable powder-coated finish
• Application: Clay mixing, reclaiming and extrusion
• Manufactured In: United Kingdom
